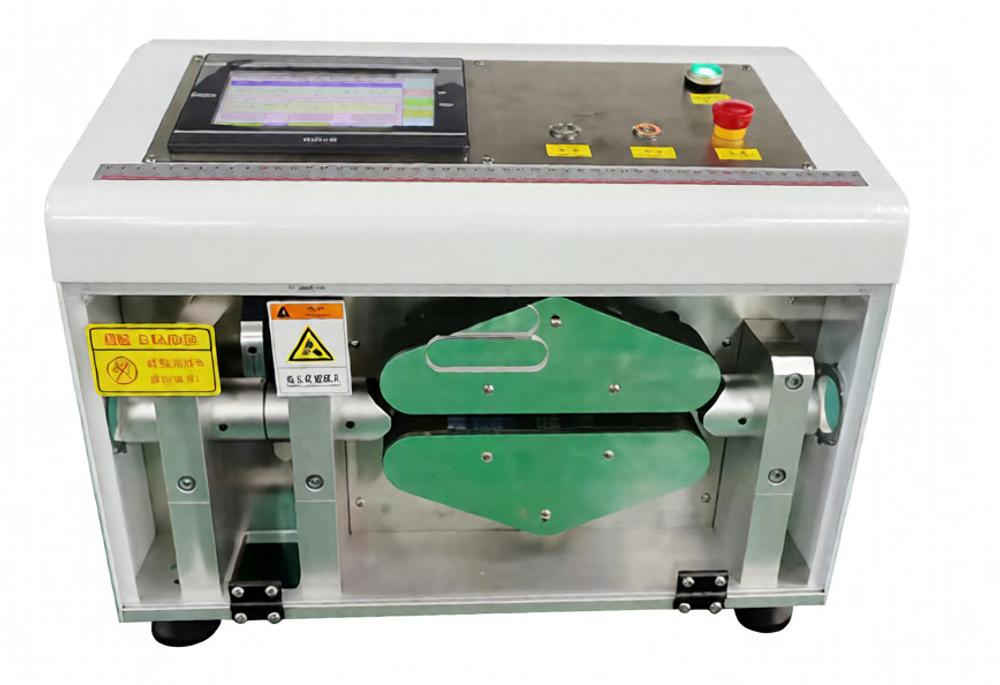

Станок для резки трубок EW-0810

Технические характеристики

Модель

EW-0810

Specifications and Models

Corrugated pipe cutting machine

Экран

Human-machine interface touch screen

Cutting method

electric motor cutting

Cut off the motor

86 stepper motor + precision planetary gear reducer

Cutting range

Φ 1-Φ 40mm ( Φ 41-50mm can be customized)

Скорость

7500pcs/H (L=50mm)

Длина резки

0.1-100000mm

Cutting tolerance

L ± 0.05×2% (depending on the material)

Питание

AC220V/50HZ

Мощность

800W

Масса

62KG

Габариты

580mm×430mm×470mm

EW-0810 Automatic Corrugated Tube Cutting Machine (1

40 mm) (41-50mm customizable)-eastontech

Automatic Corrugated Tube Cutting Machine (1

40 mm) (41-50mm customizable)

Model：Automatic Corrugated Tube Cutting Machine (1

40 mm) (41-50mm customizable)

Material outer diameter

1-40 mm
